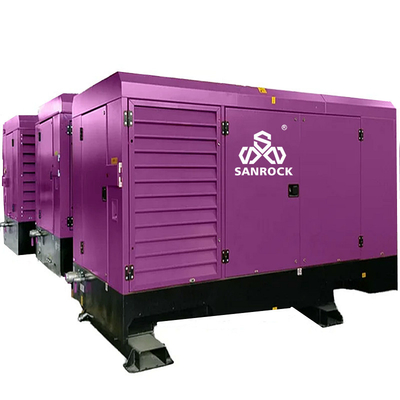

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

1 σετ/σετ
MOQ
negotiable
τιμή
Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Ονομασία του προϊόντος: Στροφική μηχανή συμπίεσης αέρα, μηχανή συμπίεσης αέρα
Όνομα: Αεροσυμπιεστής βιδών diesel
Δύναμη: 410 kW
Πηγή Ενέργειας: Ντίζελ
Πίεση: 21-25bar/21-34bar
Κατανάλωση αέρα: 31-29m2/min 36,5-32m2/min
ΤΑΧΥΤΗΤΑ: 1600/1400 στροφές 1830/1400 στροφές
Δυνατότητα δεξαμενής καυσίμου: 700L
Ικανότητα πετρελαίου λίπανσης: 120 λίτρα
Μέθοδος ψύξης: Και η δύο ψύξη αέρος/ύδατος διαθέσιμη
Εφαρμογή: Ορυχείο, άνθρακα, μετάλλιο
Τύπος: Γύρισμα
Βασικά Συστατικά: PLC, Δοχείο πίεσης, Κινητήρας, Κινητήρας, Αντλία, Ρουλεμάν
Διαμόρφωση: Ακατάστατη
Διάσταση (μήκος*πλάτος*ύψος): 4100*1800*2050mm
Βάρος: 5600kg
Επισημαίνω:

Diesel Screw Air Compressor

,

Rotary Screw Air Compressor

,

Rotary Screw Drive Air Compressor

Βασικές πληροφορίες
Τόπος καταγωγής: Ζετζιάνγκ, Κίνα
Μάρκα: SANROCK
Πιστοποίηση: CE ISO 9001:2015
Αριθμό μοντέλου: Προσαρμοσμένο
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Γυμνό πακέτο για μηχανήματα, ξύλινο πακέτο για ανταλλακτικά, ή ανάλογα με τις απαιτήσεις των πελατών
Χρόνος παράδοσης: 18-25 εργάσιμες ημέρες
Όροι πληρωμής: Εγγρ. Πίστωση, Αποδοχή Εγγράφων, Πληρωμή Εγγράφων, Τραπεζική Μεταφορά, Western Union, MoneyGram
Δυνατότητα προσφοράς: 5000 σετ/σετ ανά μήνα
Περιγραφή προϊόντων

screw air compressor used with water well drilling rig
This specialized rotary screw air compressor is engineered to deliver high-efficiency compressed air supply for water well drilling operations.
Featuring robust twin-screw technology, to power down-the-hole hammers and rotary drilling systems. superior cooling and lubrication for extended duty cycles in harsh drilling environments.
Integrated with vibration-resistant components and heavy-duty filtration systems, this compressor maintains high performance under dust and high-temperature conditions.
Automatic load/unload controls and energy-saving VFD options enhance fuel efficiency for mobile drilling rig configurations. With protection rating and corrosion-resistant coatings, it meets rigorous drilling industry standards for reliability in borewell construction and geothermal drilling applications.

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 0Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 1

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 2

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 3



Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 4Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 5

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 6Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 7

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 8

Products Description

Brand Name:Sanrock
Product name: screw air compressor
Compressor
Pressure (bar)
21-25 21-34
Air consumption (m²/min)
31-29 36.5-32
Lubricating oil capacity(L)
120
Dual transformation
Dual
Engine
brand
Cummins
Mode
QSZ 13-C550
Power (kw)
410
Max working/idle speed (rpm
1600/1400 1830/1400
Cylinder No
6
Total displacement(L)
13
Emission standard
Stage Ⅲ
Fuel tank capacity (L)
700
Unit
xhaust port specifications *Quant
G2*1&G3/4*1
Wheel specifications *Quantity
Skid mounted
Noise[Db(A)]
85±3
Dimension (mm
4100x1800x2050
Weight (kg)
5600


Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 9

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 10Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 11Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 12
Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 13Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 14





Company Profile

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 15

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 16

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
