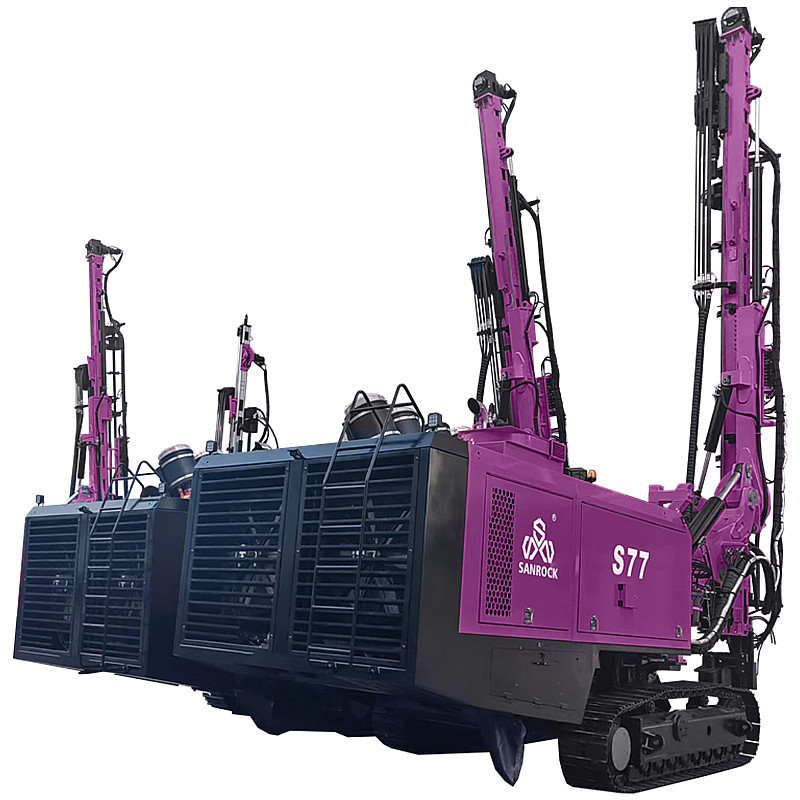

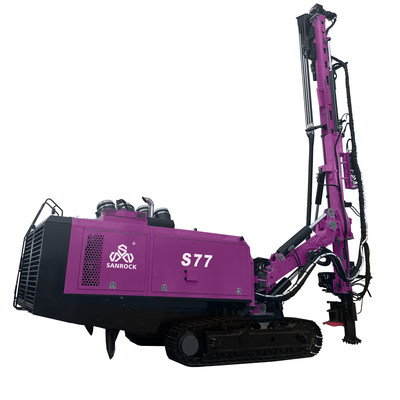

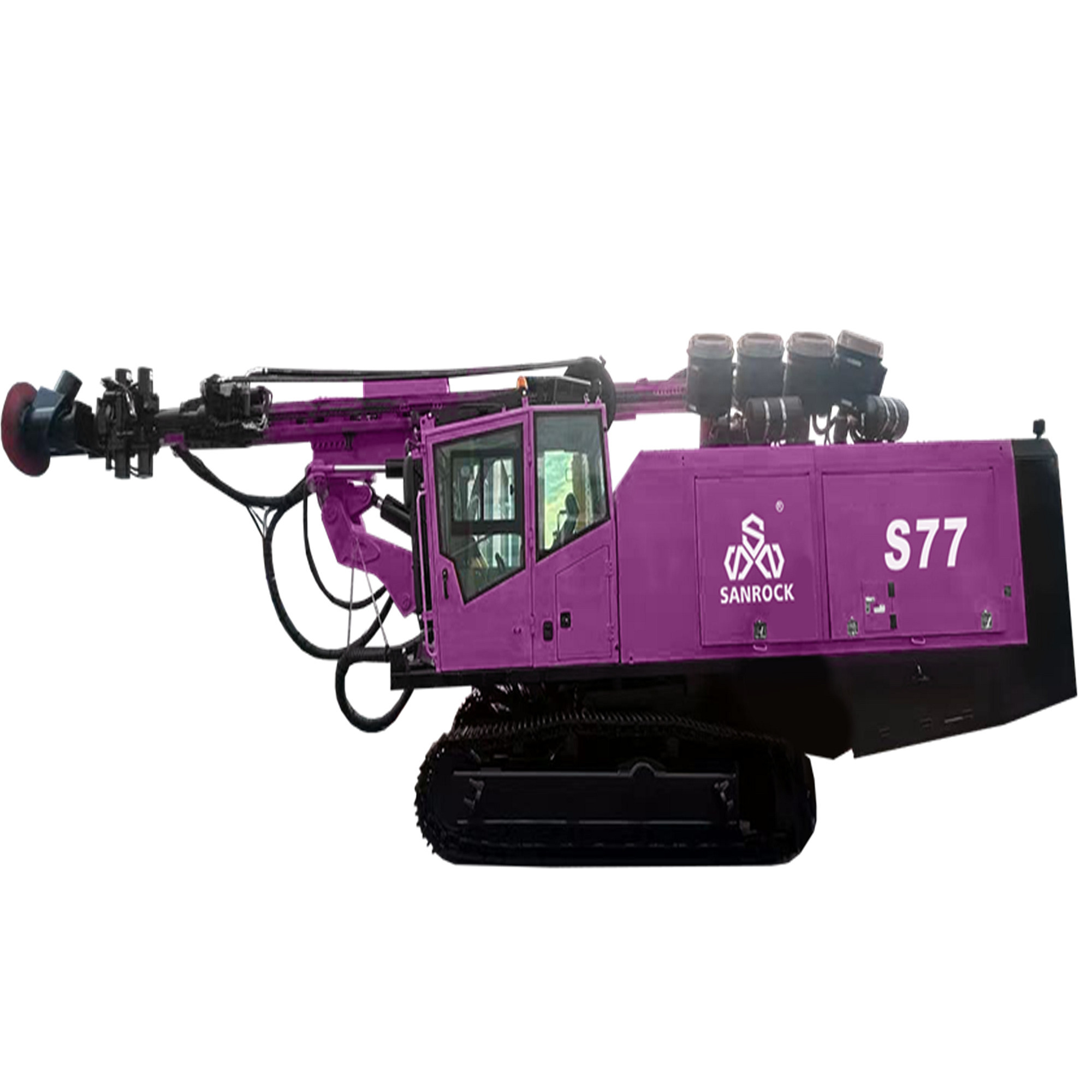

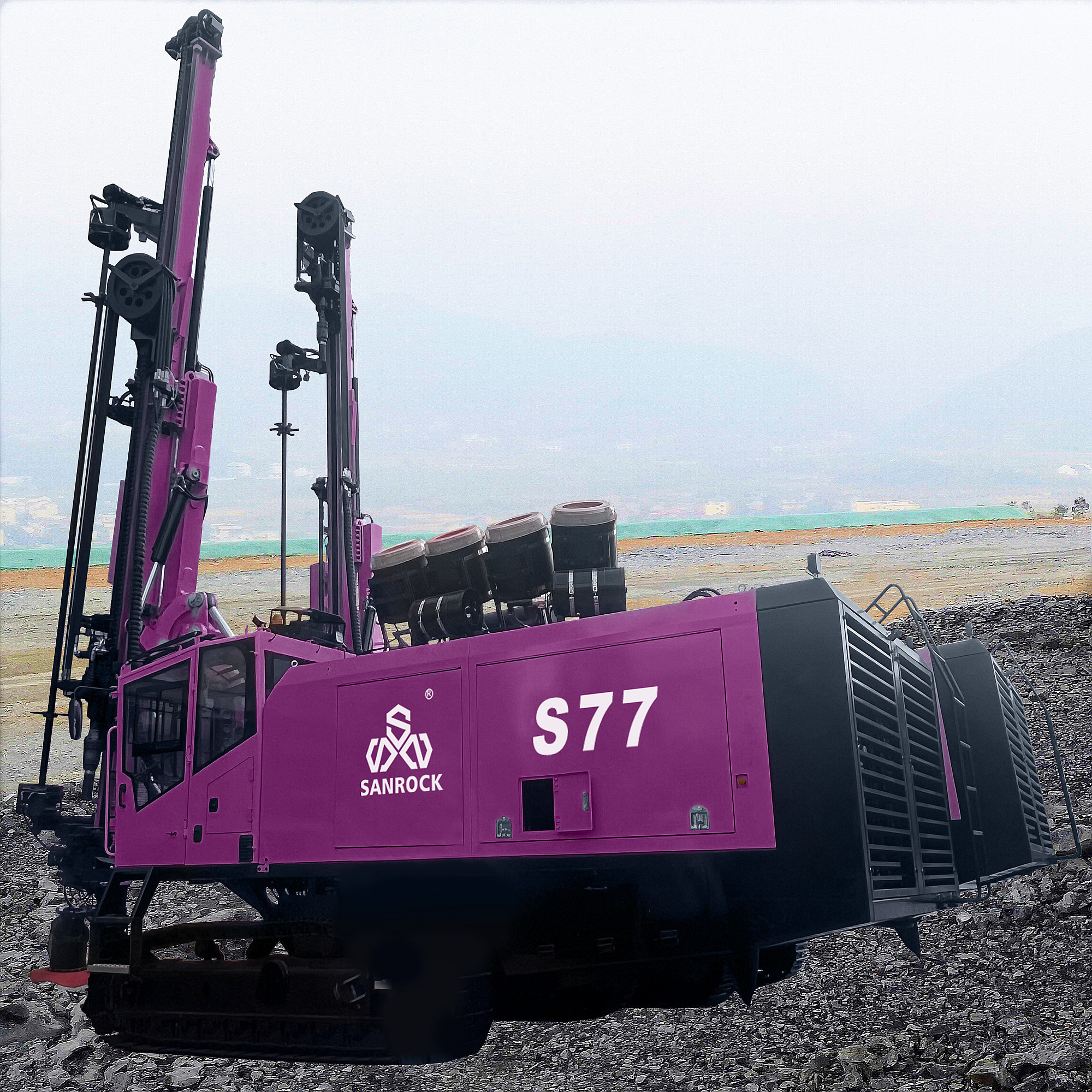

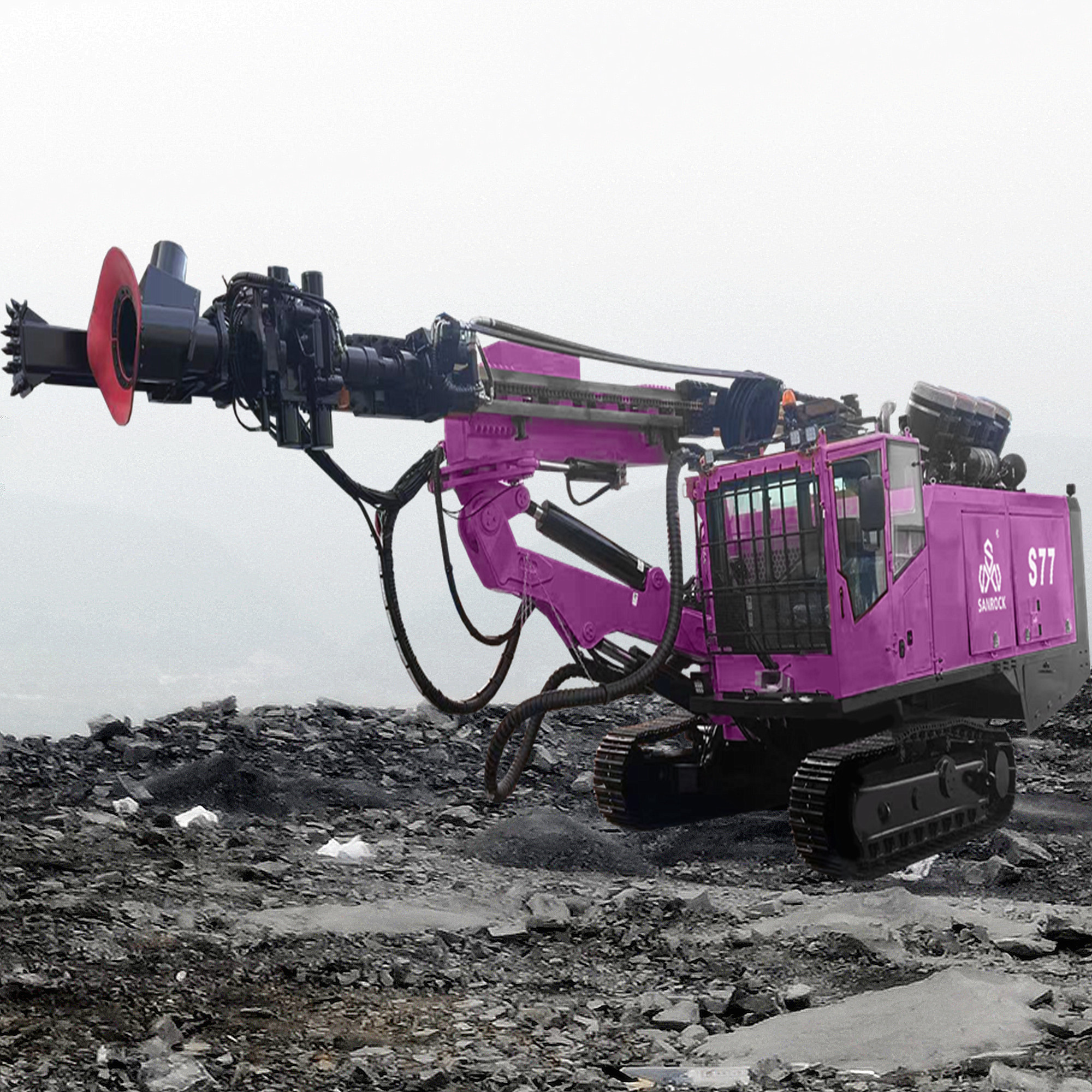

Mining Drilling Rig Crawler DTH Drilling Machine Hydraulic Borehole Drilling Rig
The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.
It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.
Product Description
|
Product name
|
DTH Drilling Machine
|
|
Power Type
|
Diesel
|
|
Engine
|
335KW
|
|
Application
|
Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
|
|
Dimension(L*W*H)
|
12300X3200X4200 mm
|
|
Weight
|
25000KG
|
|
Key Selling Points
|
High efficiency, high production capacity,Competitive Price
|
|
Drilling Diameter
|
138-235mm
|
|
Drilling Depth
|
Max.36m
|
|
Drilling hardness
|
f=6~20
|
|
Feed stroke
|
6730mm
|
|
Feed extension
|
1600mm
|
|
Lifting force
|
40kn
|
|
Method of Feed
|
motor+roller chain
|
|
Travelling speed
|
3km/h
|
|
Climbing capacity
|
30°
|
|
Ground clearance
|
360 mm
|
|
Drilling rod
|
5+1, φ 102/114mmX6m
|
|
DTH hammer
|
5"/6"/7''/8‘’
|
|
Working Pressure
|
24bar
|
|
Air consumption
|
30m³/min
|
|
Rotary torque (Max.)
|
3900 N. m
|
|
Fuel tank capacity
|
760L
|
|
|
