Jumbo Underground Tunnel Boring Machine SRJ18 is a massive, high-performance engineering system designed for excavating tunnels of significant diameter through various subsurface conditions, including rock, soil, and mixed geology.
Engineered for robustness and precision, the SRJ18 features a rotating cutterhead equipped with disc cutters or other specialized tools to break down the ground mechanically. Muck removal is efficiently handled via a conveyor system, while segments of the tunnel lining are simultaneously erected to ensure structural integrity and safety.guidance and control systems enable real-time monitoring and adjustments, optimizing tunneling accuracy and minimizing surface disruption.
These machines are critical to the construction of major infrastructure projects such as metro systems, railways, highways, water diversion tunnels, and utility passages. Their ability to operate in challenging ground conditions—with high levels of automation, reduced labor requirements, and enhanced safety protocols—makes them indispensable for modern large-scale subterranean development.
Underground Tunnel Boring Machines represent the forefront of tunnel construction technology, driving progress in urban and intercity connectivity.

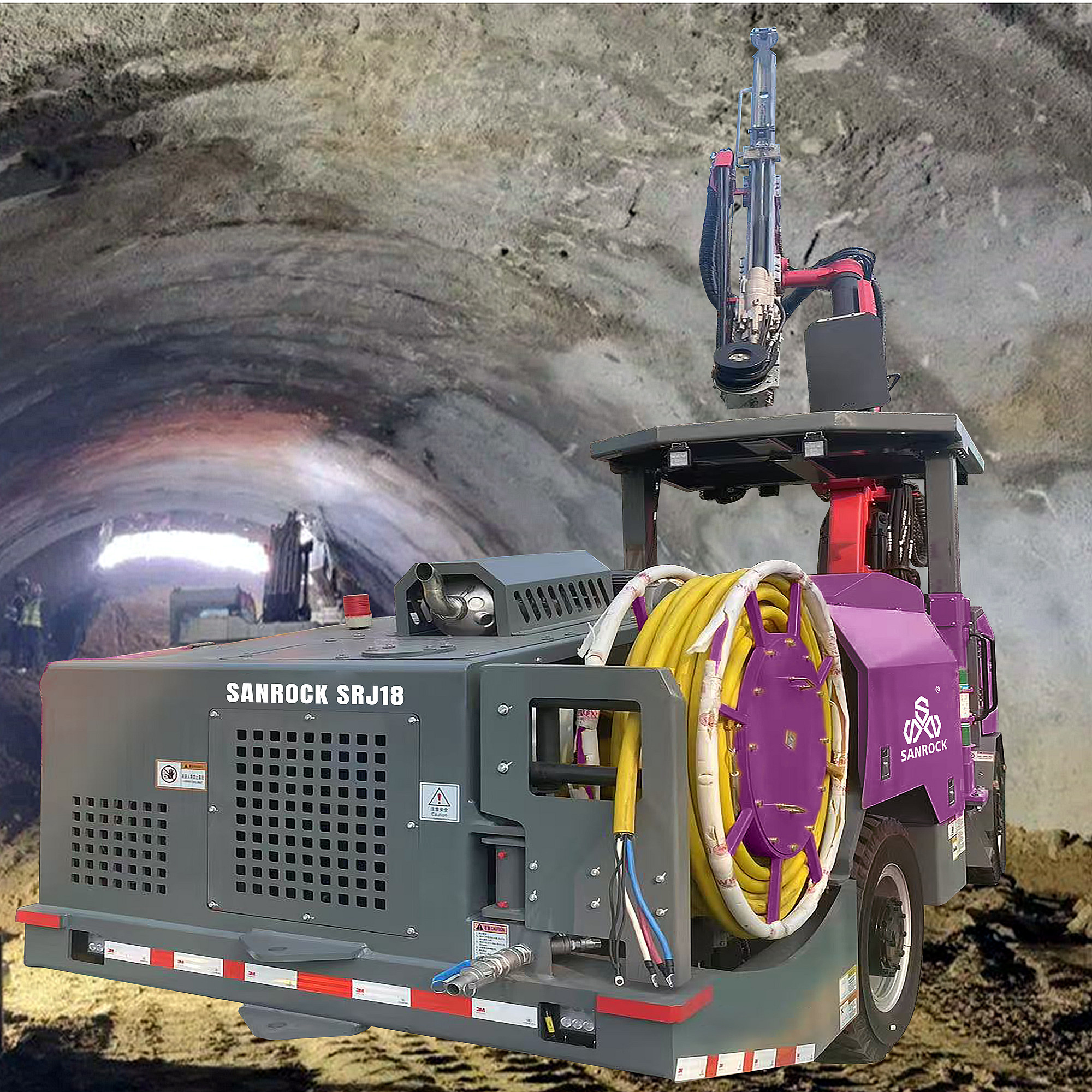

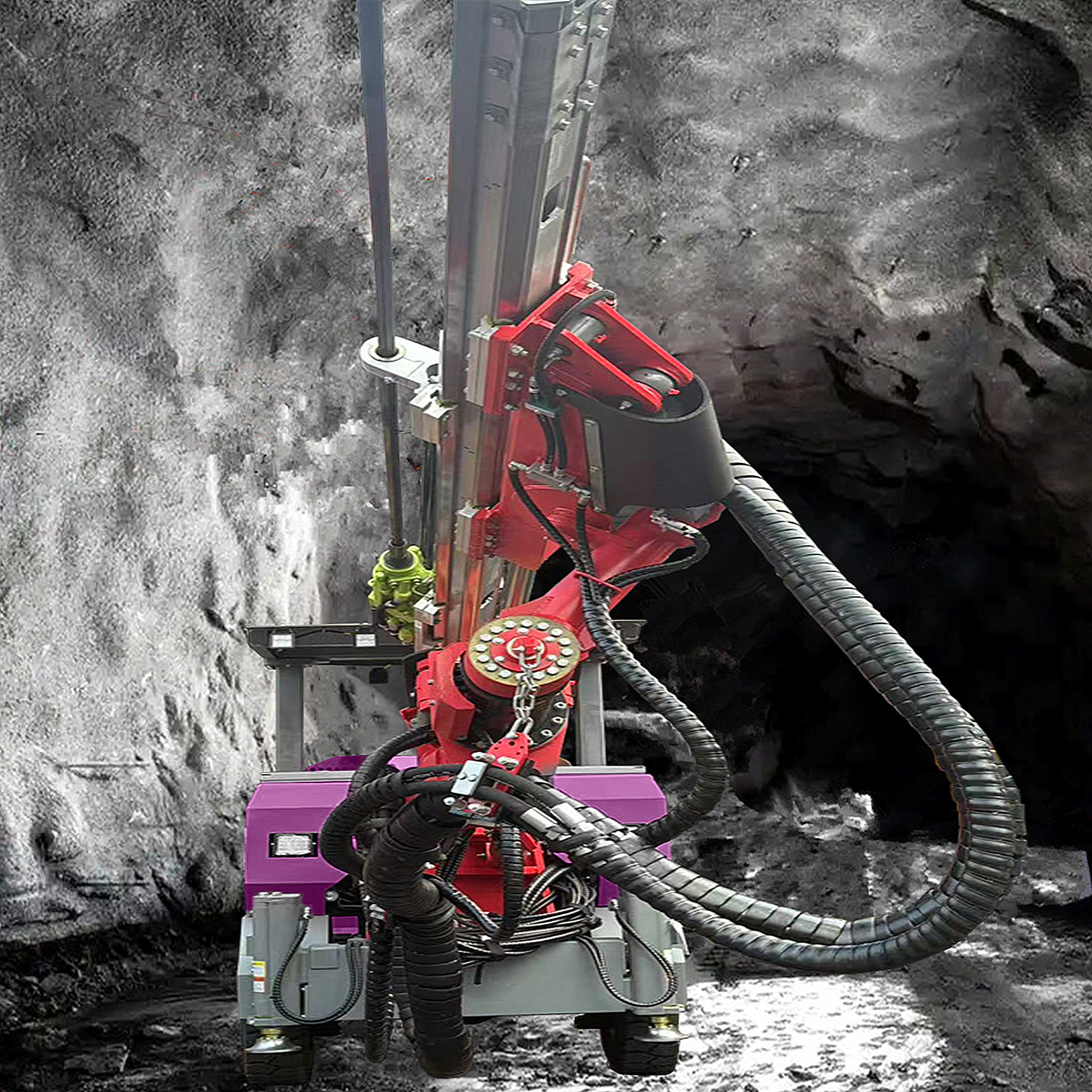

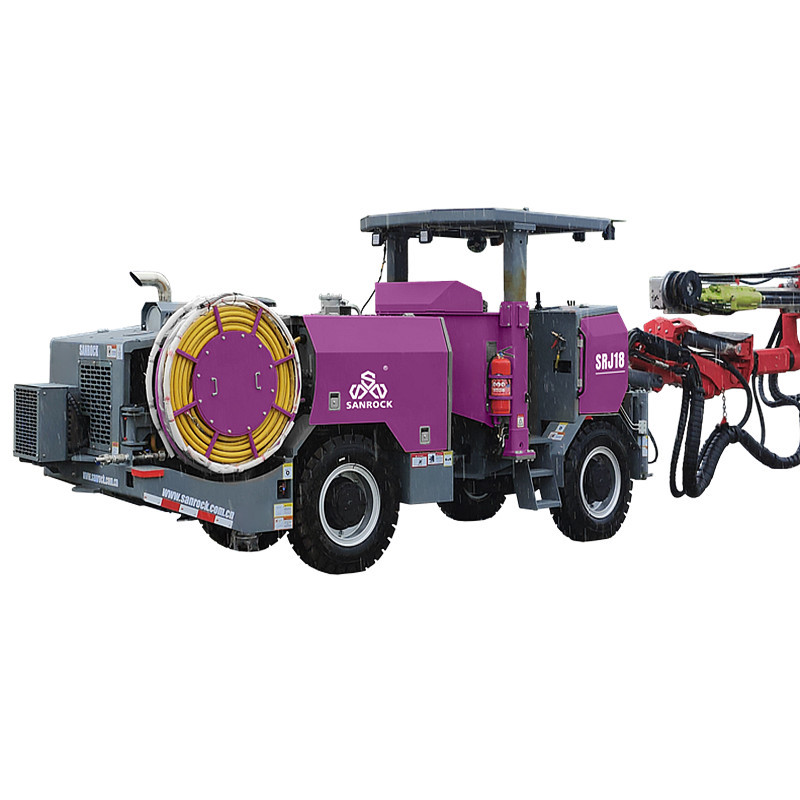

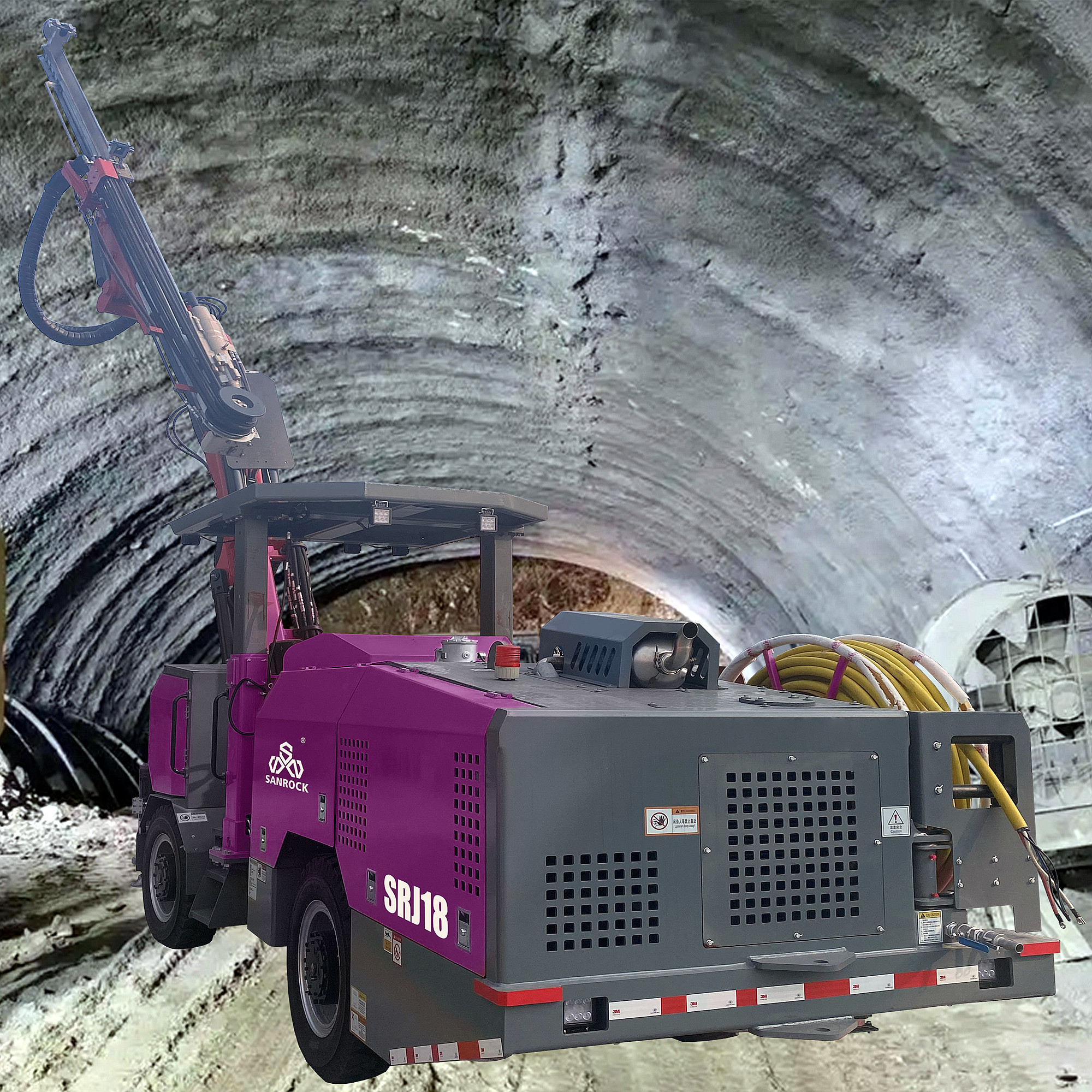

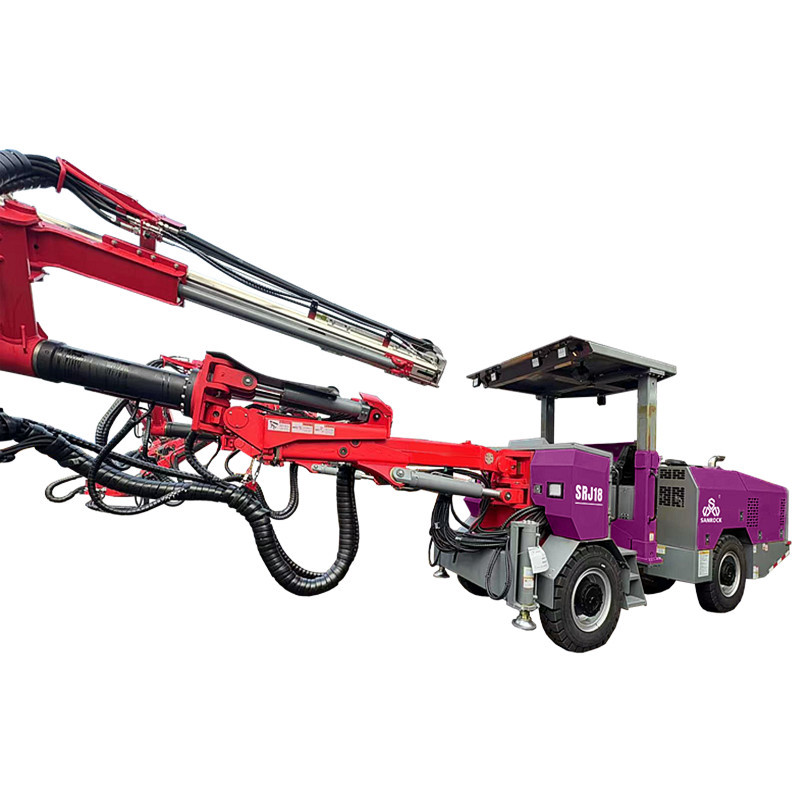

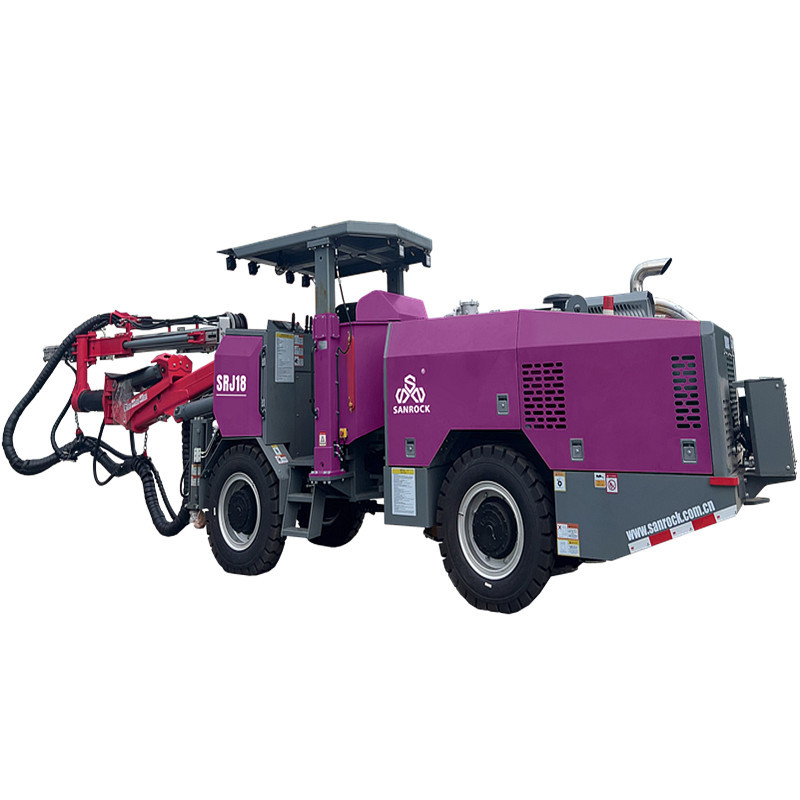

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.
Products Description
|
Product name:jumbo drilling rig
|
|
|
Model
|
SRJ18
|
|
Maximum Coverage Area(H*W)
|
2.9*2.4m
|
|
Minimum Coverage Area(H*W)
|
6.3*6.5m
|
|
Overall Dimension(L*W*H)
|
11700*1800*2100/2900mm
|
|
Weight
|
13.6T
|
|
Turning Radio Outer/Inner
|
5600/3150mm
|
|
Rock Drill Range
|
Ф41-76mm
|
|
Rock Drill Power
|
18kw
|
|
Rock Drill Rate
|
60Hz
|
|
Drill Rod
|
T38-H35-R32-4305mm
|
|
Hole Depth
|
4000mm
|
|
Diesel Engine
|
Yuchai 66kw
|
|
Main Electric Motor
|
55kw
|
|
Total Installed Power
|
62kw
|
|
|
|
Rock drill
|
|
|
Shank
|
T38
|
|
Drill range
|
41mm-76mm
|
|
Reaming range
|
76mm-4127mm
|
|
Height over drill centre
|
95mm
|
|
Length without shank
|
1008mm
|
|
Impact power
|
18kW
|
|
Impact rate
|
60Hz
|
|
Rated hydraulic pressure
|
210bar
|
|
Maximum hydraulic pressure
|
230bar
|
|
Rotation system
|
Separate rotation
|
|
Rotation speed
|
0~215rpm
|
|
Rotation torque
|
max 1000Nm
|
|
|
