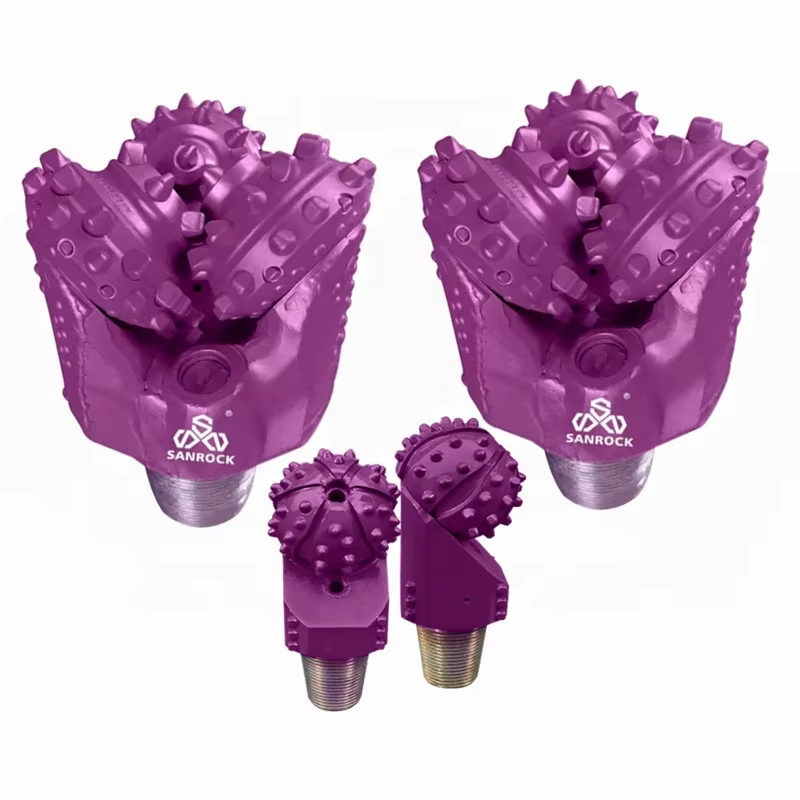

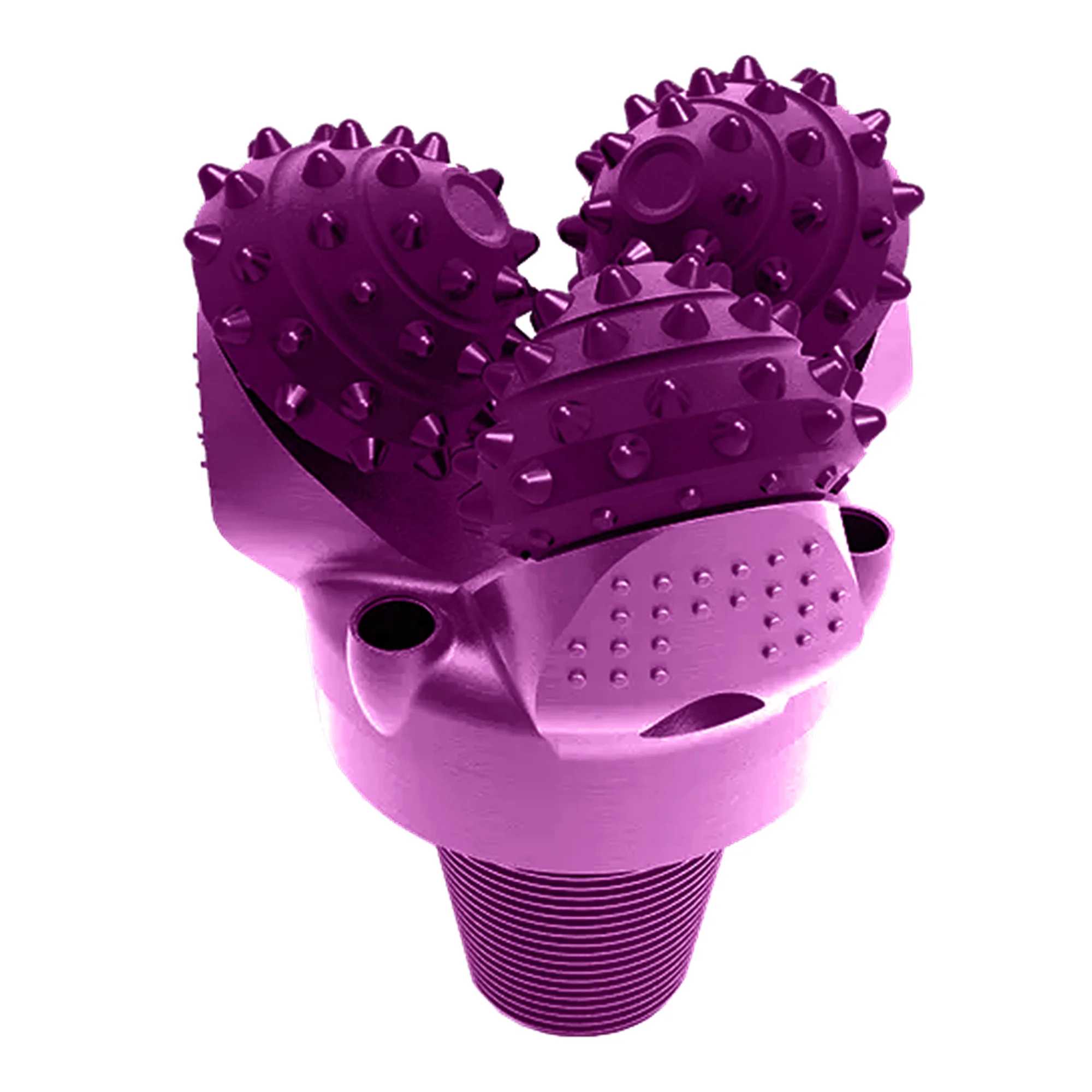

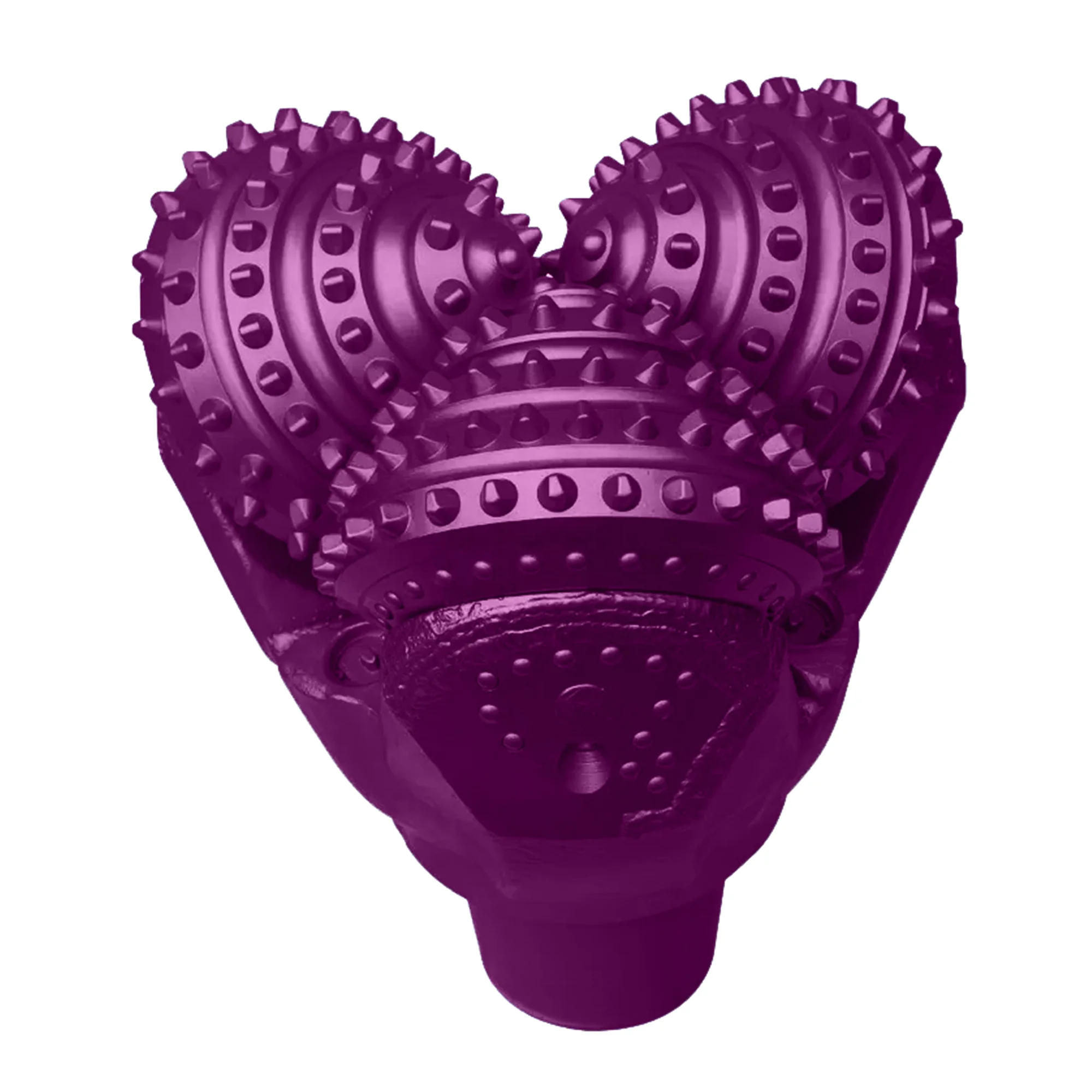

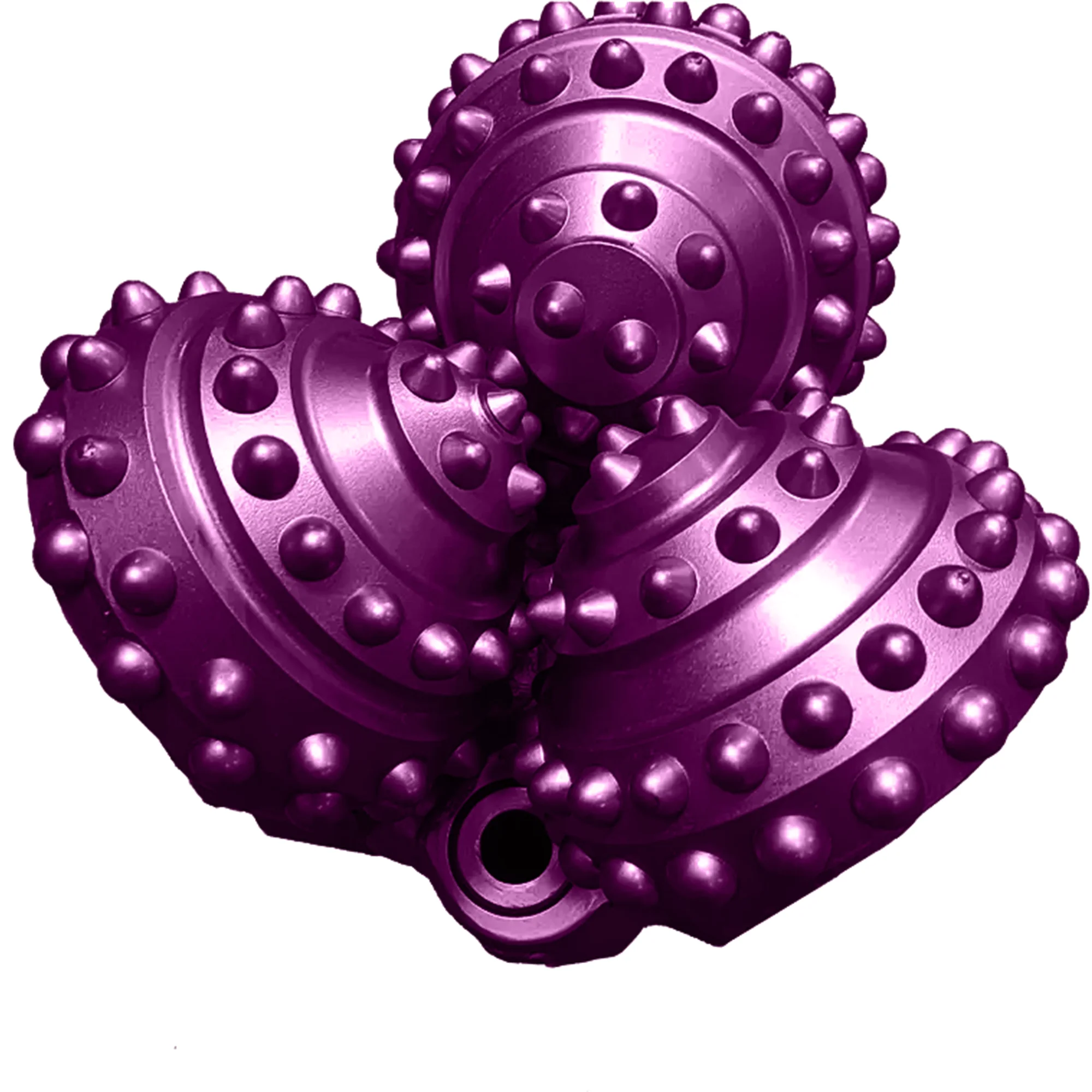

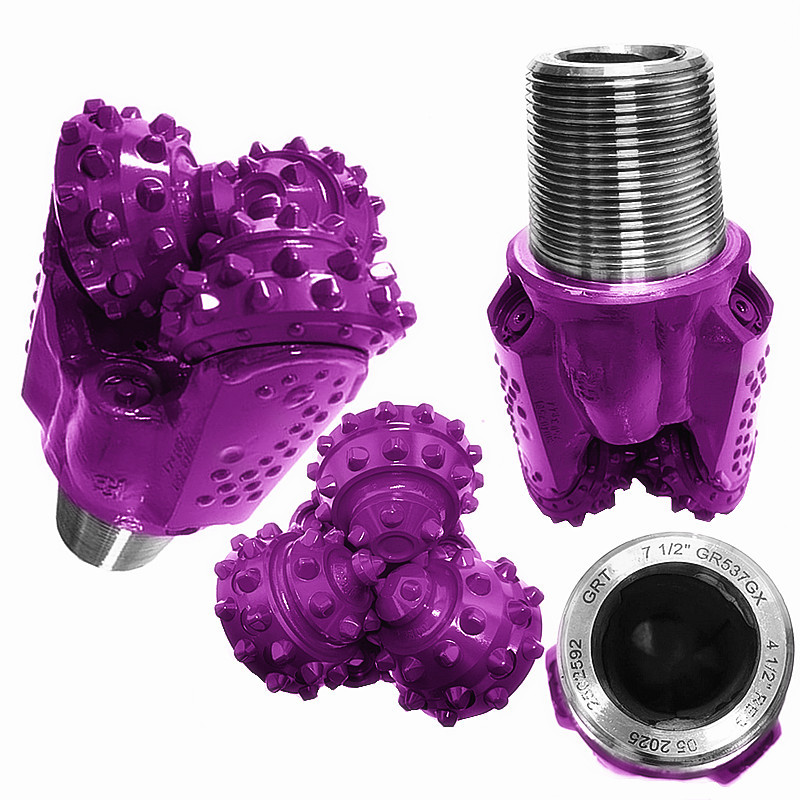

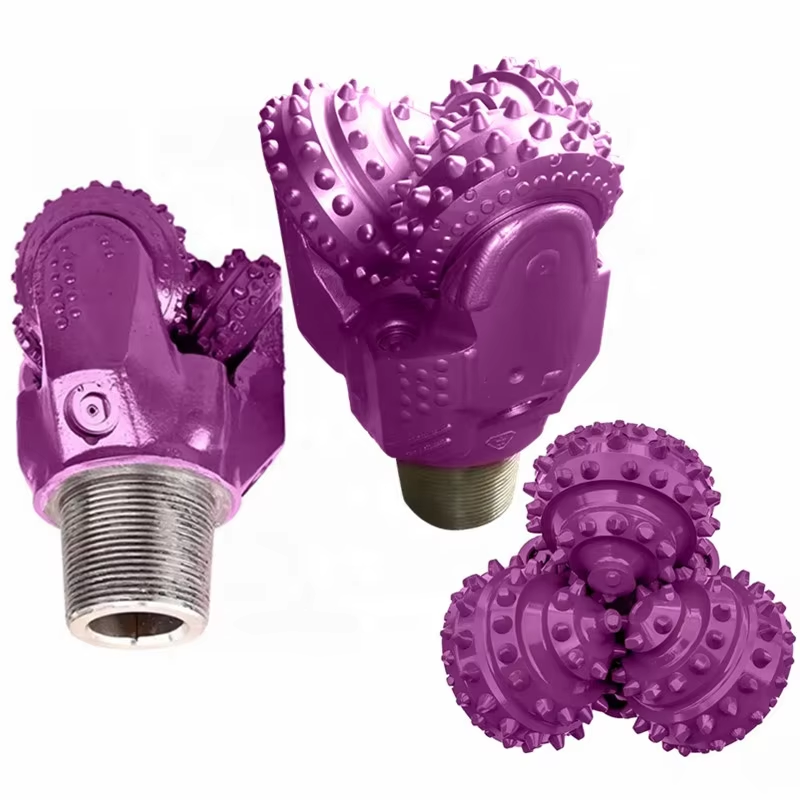

Tricone Drilling Bit Mining Rock Drilling Bit 8Inch 10Inch 12Inch Tricone Roller Bit

Tricone roller drill bits, also known as roller cone bits, are engineered for high-efficiency drilling

in diverse geological formations. Their design incorporates three rotating cones (or "rollers")

mounted on precision bearings, each embedded with hardened steel teeth or tungsten carbideinserts. As the drill string rotates, the cones roll across the formation surface, combining crushing,scraping, and shearing actions to break rock efficiently. This rolling motion minimizes friction and

heat generation, ensuring prolonged durability in harsh conditions such as deep oil and gas wells,geothermal reservoirs, or abrasive mining environments. The sealed bearing systems protect

internal components from contaminants, while customizable cone configurations adapt to specific

challenges like directional drilling or extreme hardness. Renowned for balancing penetration rates

with operational stability, tricone roller bits remain a cost-effective solution for medium-to-hardrock applications where reliability and longevity are critical.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.

Company Profile

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
