Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig

1set/sets το μήνα
MOQ
negotiable
τιμή
Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Παρέχεται υπηρεσία μετά την πώληση: Τεχνική υποστήριξη βίντεο
Τύπος: Μηχανή τρυπείας πυρήνα
Εξουσία: Ντίζελ
Βάθος διάτρησης: 600μ
Διάμετρος διάτρησης: 75-300 χιλιοστά
Σωλήνας τρυπανιού: Φ60
Κλίση διάτρησης: 90°-65°
Ο κάθετος άξονας διαβιβάζει την ταχύτητα: 32-1057r/min
Κάθετη ταχύτητα αντιστροφής άξονα: 29-137r/min
Κάθετο ταξίδι άξονα: 600 χλστ
Διάμετρος οπής κάθετου άξονα: 96 χιλιοστά
Κάθετος άξονας για ενίσχυση της ικανότητας: 60kN
Ενιαίο σχοινί για να ενισχύσει τη δυνατότητα: 30 KN
βάρος: 3600KG: 3600 κιλά
Διαστάσεις: 2900×2560×3300 χιλιοστά
Επισημαίνω:

hydraulic core drilling rig

,

geological investigation drilling machine

,

rapid mobilization core sampler
Βασικές πληροφορίες
Τόπος καταγωγής: Zhejiang, Κίνα
Μάρκα: SANROCK
Πιστοποίηση: CE ISO 9001:2015
Αριθμό μοντέλου: XYX-3
Έγγραφο: Core Drilling Rig.pdf
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Γυμνό πακέτο για μηχανές, πακέτο ξύλινο κουτί για ανταλλακτικά, Ή ζήτηση πελατών.
Χρόνος παράδοσης: 15-25 ημέρες
Όροι πληρωμής: L/C, T/T, Western Union, D/P, D/A
Δυνατότητα προσφοράς: 3000 Σετ/Σετ ανά μήνα
Περιγραφή προϊόντων

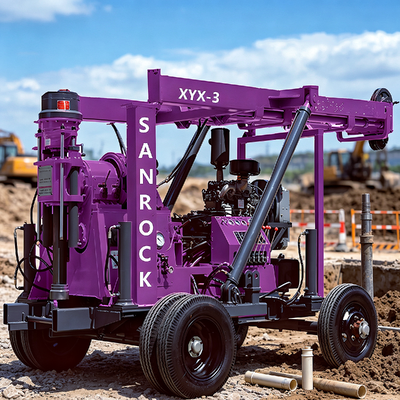

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 0

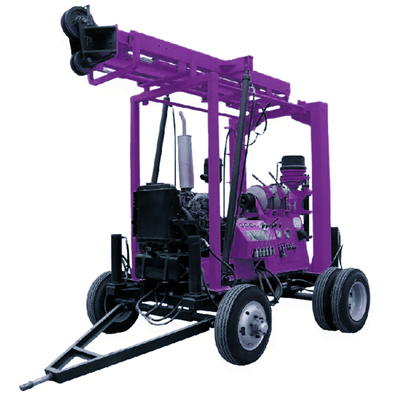

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 1

The SANROCK XYX-3 Geotechnical Core Drilling Rig is optimized for geotechnical investigation, soil investigation, and foundation engineering projects. This hydraulic diamond core drill machine delivers 100-600m drilling depth with precise core recovery for rock mechanics testing, soil profiling, and site characterization.
The XYX-3's spindle-type design provides the controlled feed rate essential for undisturbed soil sampling and rock core extraction. The trailer-mounted platform enables rapid mobilization to construction sites, dam foundations, tunnel portals, and bridge pier locations.
Geotechnical Testing Compatible:
●SPT (Standard Penetration Test) capable
●Rock quality designation (RQD) sampling
●Undisturbed soil sampling with Shelby tubes
●In-situ permeability testing
●Core orientation for structural geology
Applications: High-rise building foundation investigation / bridge and dam site exploration / tunnel geological advance prediction / slope stability assessment / infrastructure corridor survey.

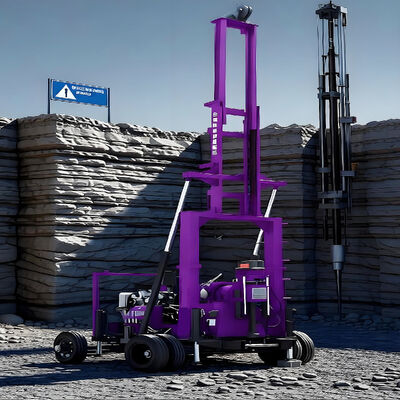

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 2

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 3

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 4

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 5

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 6

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 7

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 8

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 9

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 10



Product Description

Type:Core Drilling Rig
Power Type:Diesel
Drilling depth:600m
Drilling diameter:75-300mm
Open hole diameter:300mm
Final hole diameter:75mm
Drill pipe:Φ60
Drilling inclination:90°--65°
Vertical axis forward speed:32-1057r/min
Vertical axis reversal speed:29-137r/min
Vertical axis travel:600mm
Vertical shaft bore diameter:96mm
Vertical axis to enhance ability:60kN
Single rope to enhance speed:0.5-1.9m/s
Rope diameter:12.5mm
Single rope to enhance ability:30kN
Reel diameter:300mm
Reel capacity:65m
Mud pump (optional)
Horizontal three-cylinder BW-250 mud pump
Displacement:250L/min
Work pressure:80kgcm2
Intake pipe diameter:76mm
Outlet diameter:51mm
Double gear pump:CBF-F63/25
Pre-flow pressure:63L/min 20Mpa
Post-flow pressure:25L/min 20Mpa
Diesel engine:CloudYN27/power 42kw / 2400rpm
Motor:Y180L-4/22kW/1470rpm
Rig weight:3600KG
Dimensions:2900×2560×3300mm

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 11

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 12

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 13

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 14

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 15

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 16

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 17

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 18

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 19

Company Information

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 20

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 21

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 22

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 23

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 24

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 25

Certificate

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 26

Rapid Mobilization Core Sample Drilling Rig Machine Geological Investigation Hydraulic Core Drilling Rig 27

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment?   How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.   Shipping efficiency depends on country and city you want to ship to.   For small and delicate products, we ship by DHL, UPS, Fedex or TNT.  You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.  There will be strict inspection and testing for every order before shipping out.
